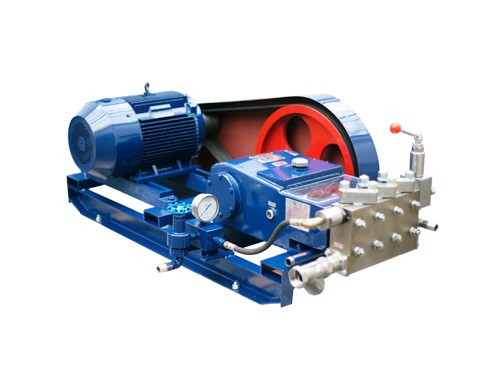

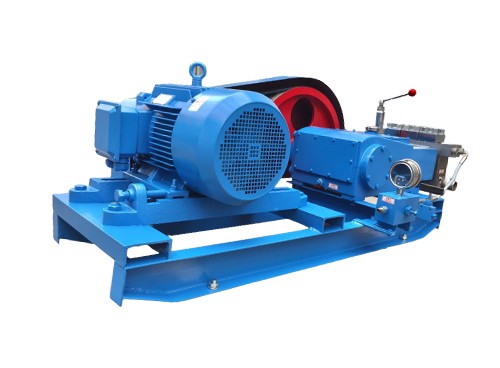

3DP60

◎ Pump Number: 20200937

◎ Pump Type: 3DP60

◎ Pressure (bar): 1000bar

◎ Flow (L/min): 7.5L/min

◎ Motor Power (KW): 15KW

◎ Medium: Water

◎ Medium Temperature ℃: Normal Temperature

◎ Valve Accessory Configuration: 1.Overflow Valve HY-Y18KA-00A 2.Pressure Relief Valve 20UV61V (Manual) 3.Check Valve 20SC46

>>Back

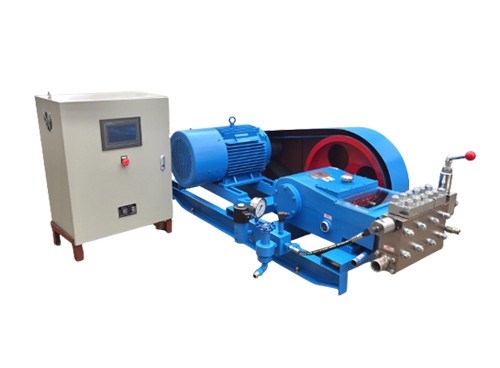

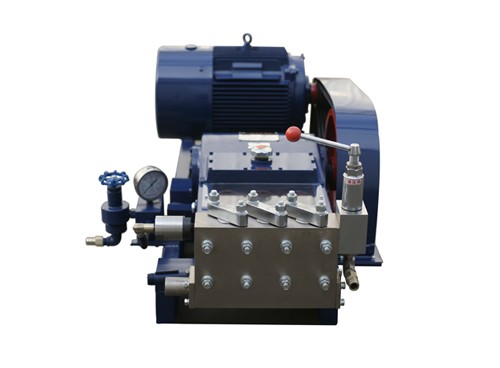

3DP60

◎ Pump Number: 20200875

◎ Pump Type: 3DP60

◎ Pressure (bar): 600bar

◎ Flow (L/min): 15L/min

◎ Motor Power (KW): 22KW

◎ Medium: Water

◎ Medium Temperature ℃: Normal Temperature

◎ Valve Accessory Configuration: 1.Overflow Valve HY-Y18K-00A 2.Pressure Relief Valve HY-JF1-00 3.Check Valve HY-ZH1-00B

>>Back

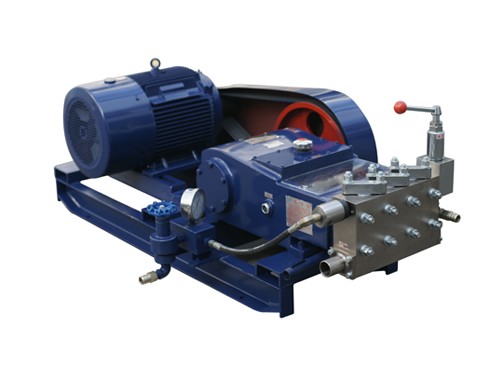

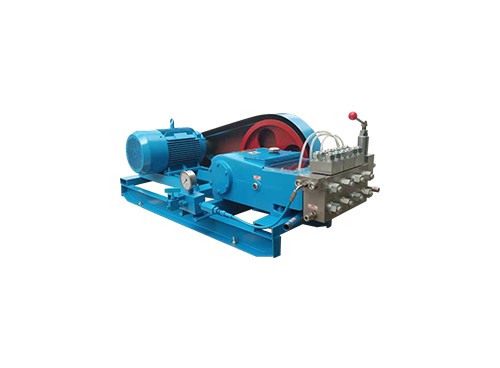

3DP60

◎ Pump Number: 20200848

◎ Pump Type: 3DP60

◎ Pressure (bar): 1000bar

◎ Flow (L/min): 7L/min

◎ Motor Power (KW): 15KW

◎ Medium: Water

◎ Medium Temperature ℃: Normal Temperature

◎ Valve Accessory Configuration: 1.Overflow Valve HY-Y18K-00A 2.Pressure Relief Valve 20UV61V 3.Check Valve 20SC46

>>Back

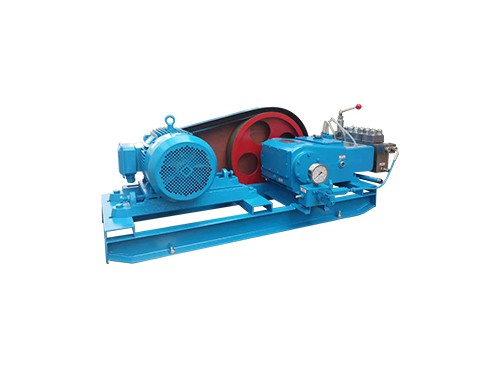

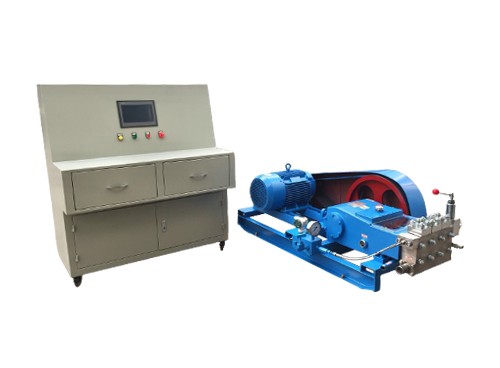

3DP60

◎ Pump Number: 20190839

◎ Pump Type: 3DP60

◎ Pressure (bar): 2000

◎ Flow (L/min): 2

◎ Motor Power (KW): 11

◎ Medium: Water

◎ Medium Temperature ℃: Normal Temperature

◎ Valve Accessory Configuration: 1.Overflow Valve HY-Y18KA-00 2.Pressure Relief Valve 60UV41V 3. Check Valve 60BC4

>>Back

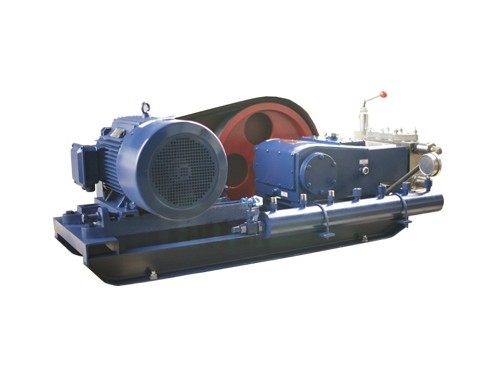

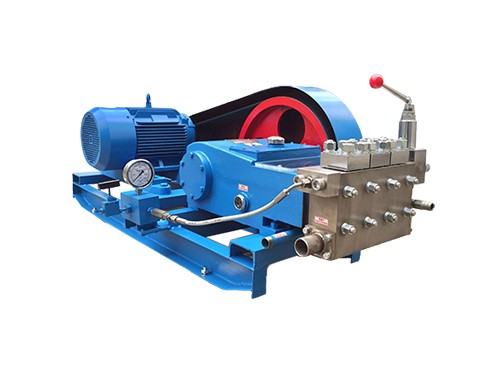

3DP60

◎ Pump Number: 20181154

◎ Pump Type: 3DP60

◎ Pressure (bar): 200

◎ Flow (L/min): 36.7

◎ Motor Power (KW): 22

◎ Medium: Water

◎ Medium Temperature ℃: Normal Temperature

◎ Valve Accessory Configuration: 1.Overflow Valve HY-Y18KA00A 2.Pressure Relief Valve HY-JF2-00 3.Check Valve HY-ZH1-00

>>Back

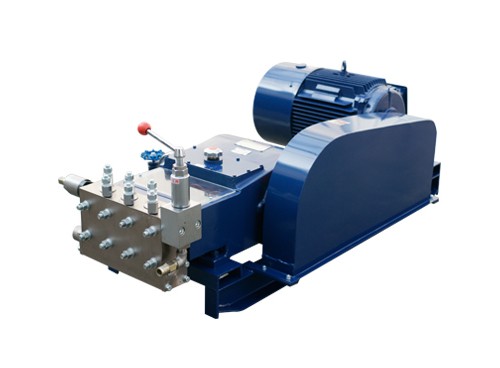

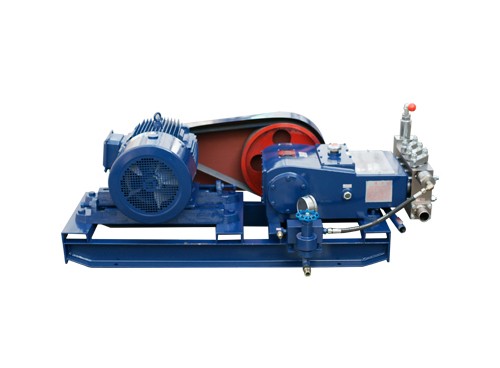

3DP60

◎ Pump Number: 20151210

◎ Pump Type: 3DP60

◎ Pressure (bar): 300

◎ Flow (L/min): 30

◎ Motor Power (KW): 18.5

◎ Medium: Clear Water

◎ Medium Temperature ℃: Normal Temperature

◎ Valve Accessory Configuration: 1.Overflow Valve HY-18K-00 2.Foot Valve HY-JF1-00 3.One-way Valve HY-ZH1-00A
